Air Shaft

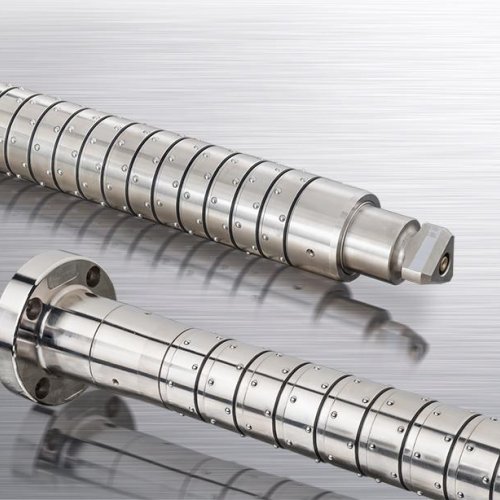

Differential Shaft or Air Shaft is used for slitter re-winder machines in the form of duplex shaft winders. The Air Shaft that we offer features high strength and can efficiently run at very high speed. Clutch Shaft consists of slotted shaft, rubber bladder and hard and ground steel cage with ball type gripper. Clutch Shaft is appropriate for materials like Paper, Steel, Thermoplastics, etc.

Highlights :

• Durable
• High strength
• Efficient performance
• Available in different sizes

Avail from us, quality Differential Shaft that is made from high quality materials thus superior performance. These Differential Shafts are widely acclaimed among the clients owing to their qualitative features. We offer Differential Shafts in various in specifications to suit the requirements of the clients.

Features

• High speed
• It is capable of compensating speed variation due to gauge variation with multi cores.
• Minimum 20 mm core width
• No-time lost in re-positioning cores since no distance pieces are required
• Durable

Sizes

• Length as per requirement
• Suitable for core ID. 3 and 6

Capabilities

• Load upto 2 tons
• Suitable for core materials: Paper, Steel, Thermoplastics
• Minimum core width 20 mm
• Suitable for Core l.D. dia 3, 4, 6, 8 (metric size and special sizes also produced)
• Length as required
• Speed upto 1000 mtrs/min

Materials Of Construction

• Cam - Brass
• Pipe - Steel
• End Generals - Steel - simple or hardened
• Lugs - Hardened Steel / Rubber

Leaf Type Air Expandable Shaft comprised of metal leaves with knurling, rubber bladder, slotted base pipe, suitable journals and non-return valves. Leaf Type Air Expandable Shaft is widely used at unwind station usually for rewind stage to avail several benefits like narrow width of core, to prevent damage to thin cores, at times core-less winding is also possible and has a limitation to accommodate gauge and speed variation. These type of shafts have a great use at unwind station, but are usually used at rewind stage for benefits listed below :

• To prevent damage to thin cores (100 % support available to the core ID.)
• Narrow width of core
• At times core-less winding is also possible
• Has a limitation to accommodate gauge and speed variation.

Sizes :

• Suitable for core ID. 3, 4 and 6 (metric size and special sizes also produced)
• Lengths as required

Lug Type Expandable Shaft is the most commonly used shaft consists of journals to suit users machine, slotted pipe, rubber bladder, lugs and non-return valve. Lug Type Expandable Shaft is suitable for both winding and unwinding stages and can easily accommodate multiple cores & single cores up to 150 mm. Material of Lug Type Expandable Shaft is decided according to the load, speed, core materials and duty conditions. The limitation of Lug Type Expandable Shaft is that it cannot take care of gauge variation or individual core speed variation since slippage is not achieved and core width less than 150 mm.

Features

• Superior quality
• Durable
• Low maintenance cost

Sizes

• Suitable for Core ID. dia 3, 4, 6, 8 (metric size and special sizes also produced)
• Lengths as per customers requirement

We are a well-known Manufacturer, Supplier and Exporter of Quick Lock Shaft, which is highly acclaimed for its high performance and high performance. These Quick Shaft Locks are available in various specifications to suit the clients requirement. Further, we offer Quick Lock Shaft at affordable price.

Size Available

• Length as per requirement
• Suitable for core I.D. 3, 4 & 6
• Individual Quick Locks are also available having width of 50 mm, 75 mm, 100 mm and 300 mm. The bore of Quick Lock is tailor made

Mechanical Expanding Shaft that we offer is valued for durability and flawless quality. Our Mechanical Expanding Shaft consists of brass cam, steel lugs, slotted pipe and ratchet. The Mechanical Expanding Shaft is highly beneficial with cores that has uneven inside diameter. Mechanical Expanding Shaft that we offer is appreciated for true concentric expansion, fail safe operation and positive lug retraction.

Sizes

• Suitable for Core ID. 3 and 6
• Length as per requirement

The most required use of Multi Tube Shafts is in case of bladder failure. Multi Tube Shaft can hold the core till the entire process is completed. Damaged bladder can be changed easily, even on the machine with the help of our Multi Tube Shaft. Expanded area is available almost all over the length of the pipe body with very small width of the cores that is possible to hold.

Highlights :

• Durable
• Available in various sizes
• Superior finish
• High strength
